Products

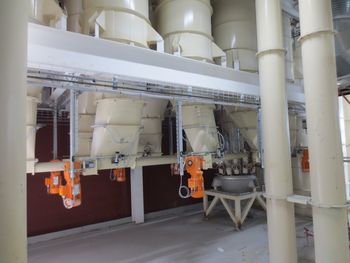

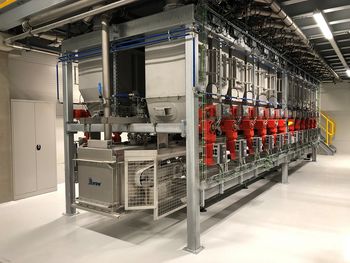

Differential weighing systems

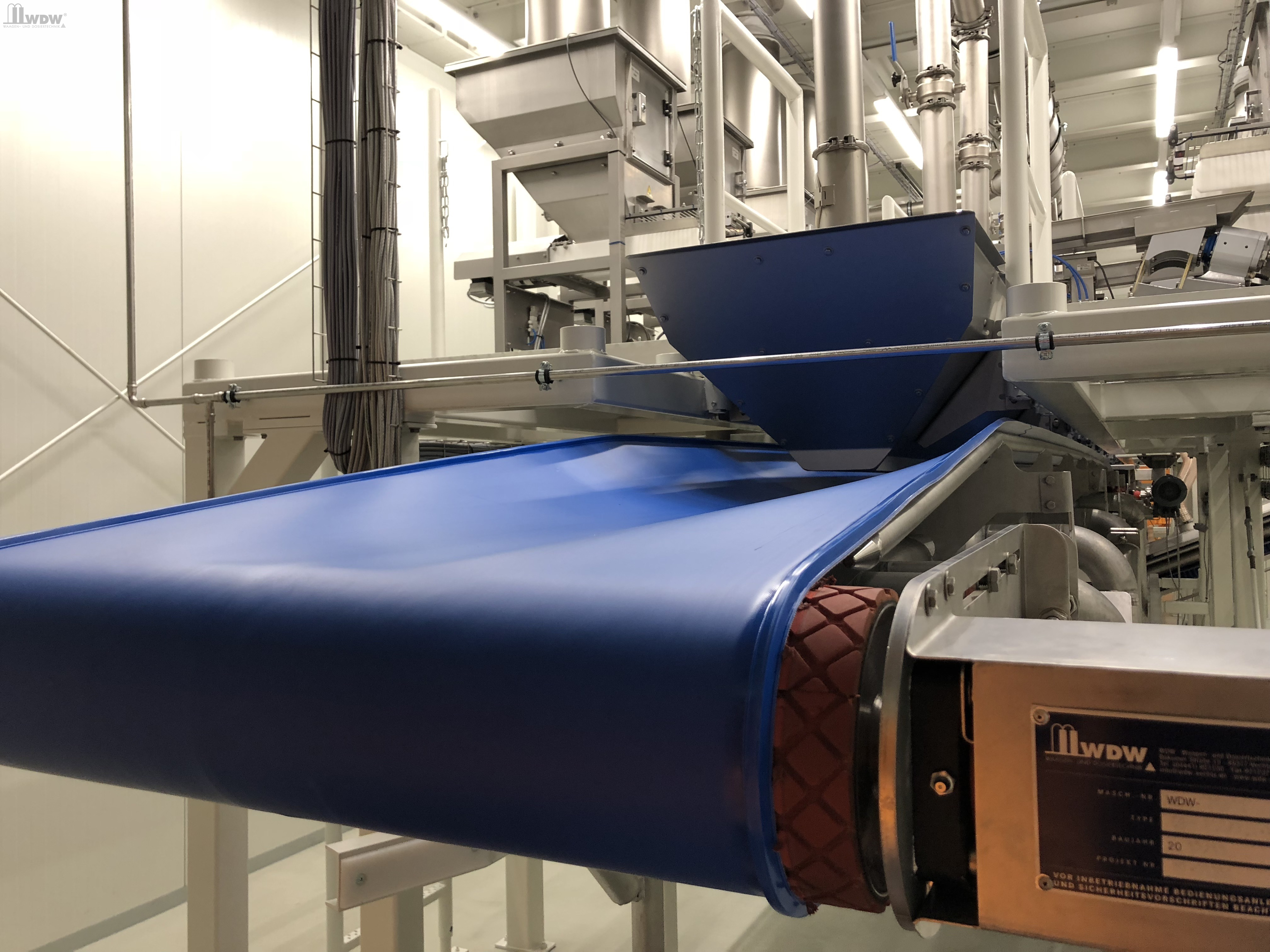

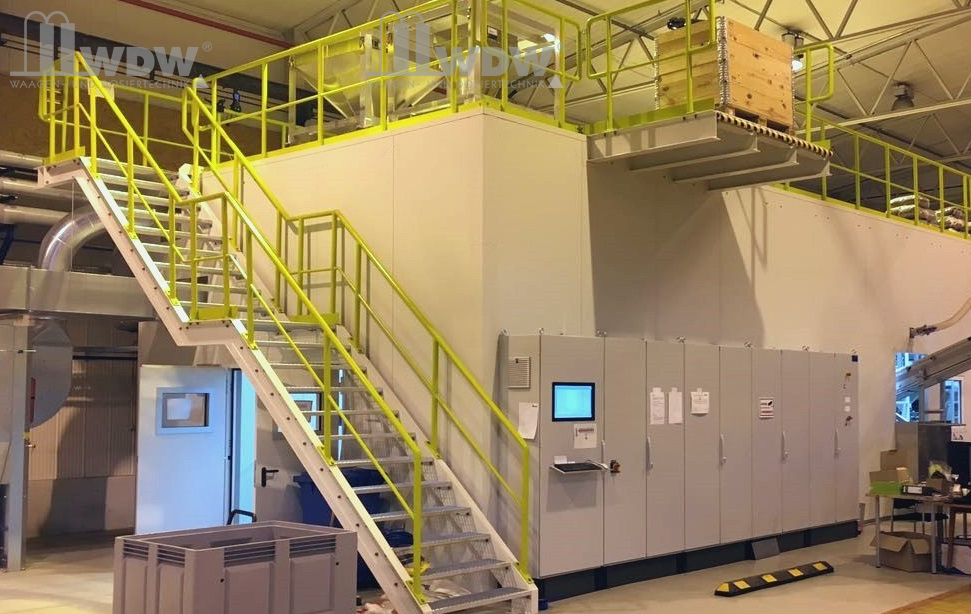

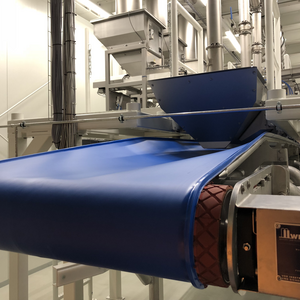

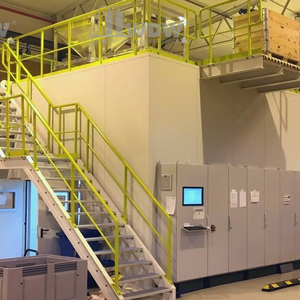

Differential weighing systems are used for dosing micro, medium and macro components. The additives are added to the respective storage cells in big bags or sacks via a filling platform. Differential weighing of the cells takes place, i.e. each cell is designed as a scale, so the exact stock value of the cell can be evaluated at any time. The dosing of the cells takes place via various discharge devices simultaneously onto one discharge device (e.g. trough conveyor belt, RBTF) into the mixer.
On request, the systems can be supplied with a stand-alone control and visualisation system or integrated into an existing process control system. The release of the lid weighing for filling the storage cells can be secured by a barcode system, which is also mapped in the control system. Filling errors can be directly detected through continuous stock control.
Download brochure: "Differentialwaagen und Systeme"
Pros
- Modular construction / modular system
- Dosing screws with shut-off valves for maximum dosing accuracy
- Container size and discharge elements can be selected individually
- Suspension of weighing hopper at three points, therefore delivering high stability during the weighing cycle
- Simultaneous discharge of all dosing cells possible, therefore saving time
- Seamless inventory management of each individual component
- Maximum possible resolution of the scale depending on the dosing accuracy
Options
- Dosing accuracy and dosing capacity
- ATEX version
- Discharge aids can be retrofitted for extremely critical products
- Container in mild steel (painted) or stainless steel V2A / V4A (pickled or polished)
- Batch check-weighing using a weighing cone
- Monitoring systems for filling / lid monitoring and release
- Filling trolley with aspiration connection for container charging
